Tiny hybrid HPM motor delivers precision and power in silence

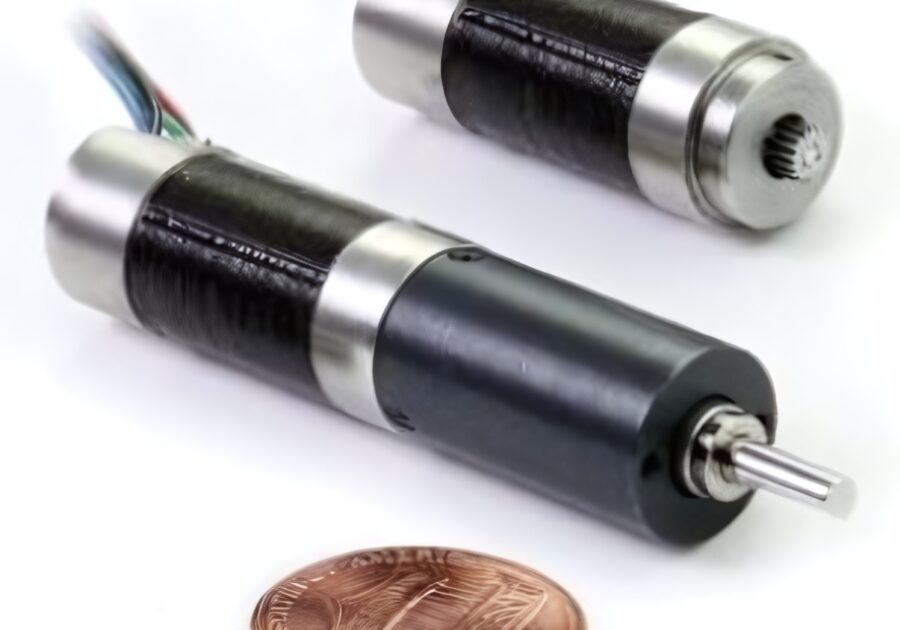

When a motion control application requires an ultra-compact motor which delivers precision, power and silence in the tiniest package, Moons’ Industries offers the ideal solution. Their revolutionary PTX05 HPM Nano Step Motor represents ground-breaking innovation in motor technology by combining a hybrid stepper stator with a PM motor’s rotor, all within the sleek form of a high-speed precision micro-BLDC motor.
Measuring just 13mm in diameter yet delivering impressive power and speeds reaching up to 9,000 RPM’s makes these motors ideal for applications requiring high speeds in minimal spaces. The result is a motor that behaves like a typical high-speed slotless BLDC motor and boasts a hybrid stepper performance of precise position control and holding capabilities.
Low noise and vibration
Say goodbye to the buzzing and humming typically associated with a conventional stepper motor as the PTX05 operates with an impressive reduction in noise and vibration making it ideal for noise sensitive applications, such as, chutes, hoppers, machine guards, panels, conveyors and tanks. Its low resonance design ensures virtually zero vibration, even at high speeds.
Precision control
The motor features a 30º step angle, providing exceptional positional control in an open loop design. Additionally, when paired with a gearhead to further reduce the step angle, means it can easily accommodate the most demanding motion control applications.
Versatility for a Wide Range of Applications
The PTX05 HPM motor’s features and versatility means it is ideally suited for a wide range of applications, including electrical oil valves, electric grippers, syringe pumps, miniature hydraulic pumps and more.
